CircleCI

This guide walks you through the process of automating Sentry release management and deploy notifications in CircleCI. After deploying in CircleCI, you’ll be able to associate commits with releases. You'll also be able to apply source maps to see the original code in Sentry.

Before starting, confirm that your Sentry project is properly set up to track commit metadata by installing a repository integration. Once that's installed, and you've added your repository, come back to this guide. If you've already installed a repository integration, you're ready to go.

Create a Sentry Internal Integration

For CircleCI to communicate securely with Sentry, you'll need to create a new internal integration. In Sentry, navigate to Settings > Developer Settings > New Internal Integration.

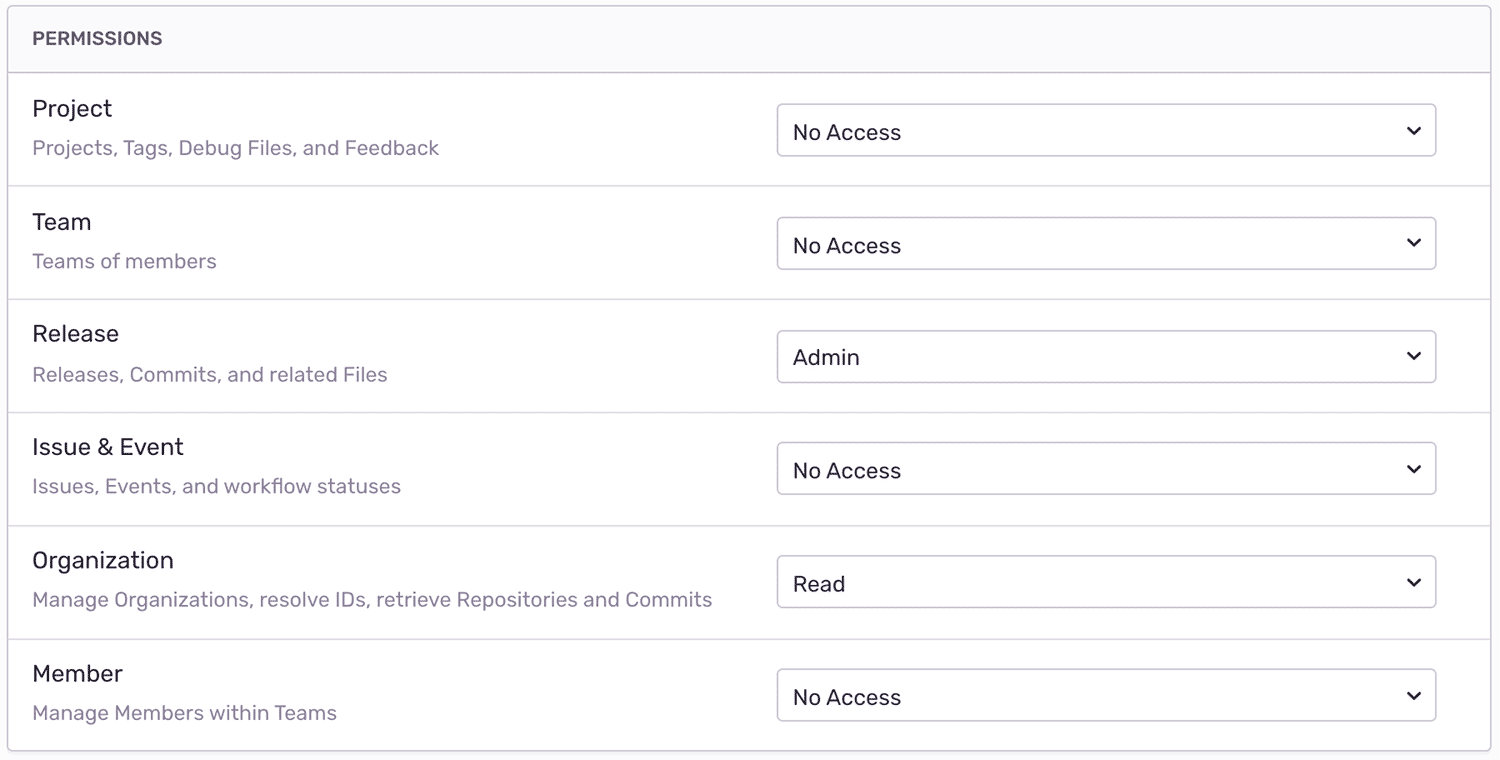

Give your new integration a name (for example, “CircleCI Deploy Integration”) and specify the necessary permissions. In this case, you need Admin access for “Release” and Read access for “Organization”.

For more details about scopes and API endpoints, see the full documentation on API Permissions.

Click "Save", then record your token, which you'll need in the next section.

Setting Environment Variables in CircleCI

Next, you'll need a few environment variables to configure the Sentry CLI:

• SENTRY_AUTH_TOKEN - Your internal integration token
• SENTRY_ORG - Your Sentry organization slug
• SENTRY_PROJECT - Your Sentry project slug

To access your internal integration token securely, store it as an environment variable on your project:

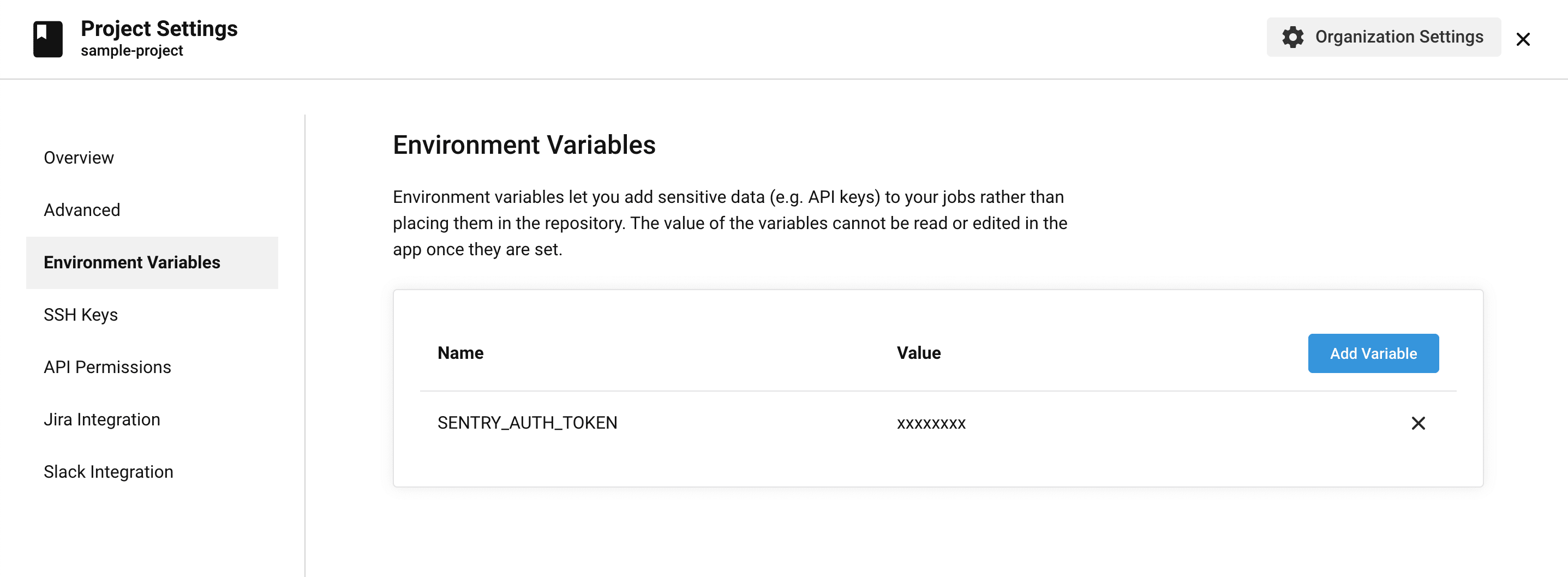

1. In the CircleCI application, go to your project’s settings by clicking the gear icon on the Pipelines page, or the three dots on other pages in the application.
2. Click on Environment Variables.
3. Add a new variable by clicking the "Add Variable" button and enter SENTRY_AUTH_TOKEN as the name and your internal integration token as the value.

The other variables do not contain sensitive information, so you'll use the environment key to define them as environment variables in your config.yml file.

Create Release and Notify Sentry of Deployment

To automate your Sentry release management process, you'll need to add the Create release and notify Sentry of deploy step below after your deploy step, either in a new job or at the end of your existing deploy job:

notify-sentry-deploy:
  executor:
  # Specify executor for running deploy job
  environment:
    SENTRY_ORG: sample-organization-slug
    SENTRY_PROJECT: sample-project-slug
    SENTRY_ENVIRONMENT: production
  steps:
    - checkout
    # ...
    - run:
        name: Create release and notify Sentry of deploy
        command: |
          curl -sL https://sentry.io/get-cli/ | bash
          export SENTRY_RELEASE=$(sentry-cli releases propose-version)
          sentry-cli releases new -p $SENTRY_PROJECT $SENTRY_RELEASE
          sentry-cli releases set-commits $SENTRY_RELEASE --auto
          sentry-cli releases files $SENTRY_RELEASE upload-sourcemaps path-to-sourcemaps-if-applicable
          sentry-cli releases finalize $SENTRY_RELEASE
          sentry-cli releases deploys $SENTRY_RELEASE new -e $SENTRY_ENVIRONMENT

For more details about the release management concepts in the snippet above, see the full documentation on release management.

Notes:

• If you’re not deploying a project that requires source maps or you've sent source maps to Sentry using another method, omit the upload-sourcemaps line.
• If you can’t install a repository integration, send commit metadata using the create release endpoint or omit the set-commits line.
• sentry-cli releases propose-version defaults to the commit SHA of the commit being deployed. To set this to a different version, modify SENTRY_RELEASE to the preferred version.
